Fiber reinforced polymer (FRP / GRP)

Introduction

Pultruded Fiber Reinforced Polymer or FRP/GRP is a pultruded composite material consisting of reinforcing fiber thermosetting resin and other materials such as fillers and pigments. Glassfiber is generally used as a reinforcing material and polyester resin are used as bending agent.

Pultruded composite products are increased being used in variety of applications. Glass fiber reinforced polymer (GRP) materials are rapidly growing in demand and FRP/GRP pultrusions are leading the way.

The manufacturing of Pultruded profiles is the most efficient method of forming composite material with consistent high quality and low scrap.

Why Fiber Tech FRP/GRP Grating

  1. CORROSSION RESISTANT – It gives resistance against almost all chemicals & in most hostile environments
  2. LIGHT WEIGHT – Density compared to steel is 4 times less
  3. NON CONDUCTIVE – It does not carry any electric current
  4. FIRE RETARDANT
  5. MAINTENANCE FREE – No rework like painting required
  6. EASY TO INSTALL – No welding or hot permission required while installing
  7. IMPACT RESISTANCE - The product allows repeated deflection without permanent deformation
  8. UV RESISTANT – Inbuilt UV resistance gives protection from direct sunlight exposure
  9. LOW INSTALLATION COST – Being light weight, it can be installed by anybody
  10. AESTHETIC – Attractive colour improves plant look
  11. EASY TO CLEAN – Totally washable as it is completely rust & corrosion proof
  12. LIFE CYCLE – Long durability ensures lowest in life cycle cost

List of FRP / GRP Products

  1. FRP / GRP Structures
  2. Pultruded Gratings
  3. Moulded Gratings
  4. Cable Tray & Accessories
  5. Operators Platform
  6. Hand rail & Fencing
  7. Staircase
  8. Ladders
  9. Battery Stand
  10. Trench covers
  11. Street Light Poles
  12. Manhole covers
  13. Profiles

Application of Fiberglass Grating

  1. Oil & Gas
  2. Offshore
  3. Industrial
  4. Water Treatment Plants
  5. Building Construction
  6. Marine
  7. Mining
  8. Chemicals & Fertilizer
  9. Pollution Control
  10. Power Plants
  11. Pulp & Pater
  12. Recreation
Fig: 1.1
Fig: 1.2

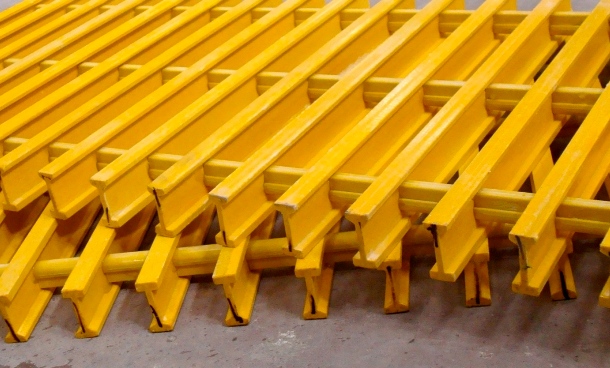

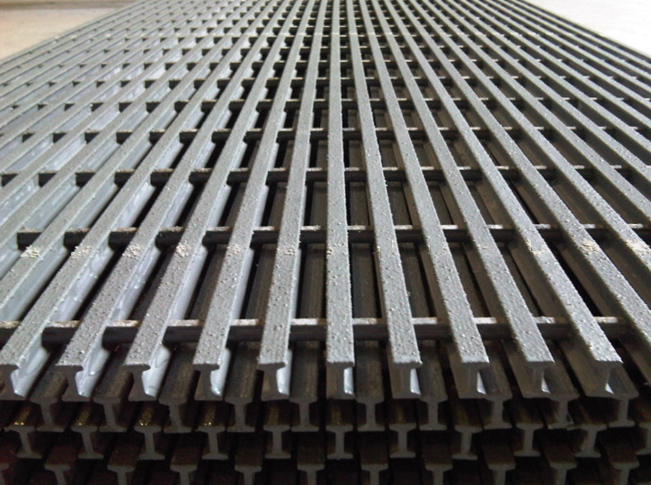

Pultruded Gratings

  1. Material of construction - Pultruded GRP / FRP
  2. Height of Grating - 25, 30, 40 & 50 mm
  3. Can be design as per requirement of load
  4. Can be made in any colour with self pigmentation hence no after colouring
  5. Can be made anti skid

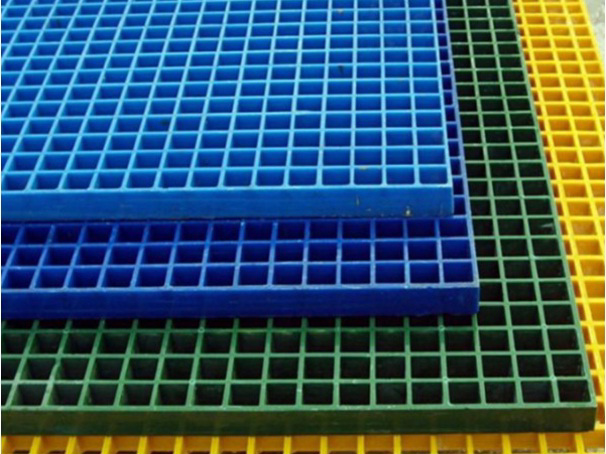

Moulded Gratings

  1. Material of construction - GRP / FRP
  2. Thickness of Grating - 20, 25, 30, 40, 50 & 60 mm
  3. Mesh size - 40 mm X 40 mm
  4. Can be design as per requirement of load
  5. Can be made in any colour with self pigmentation hence no after colouring

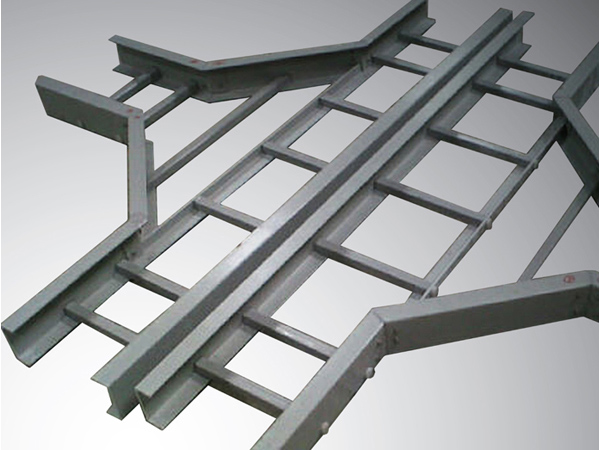

Cable Trays & Accessories

  1. Material of construction - Pultruded GRP / FRP
  2. Perforated Type - Width 50, 60, 75, 100, 150, 200, 250 & 300 mm
  3. Ladder Type - Width 150, 300, 450, 600 & 750 mm etc.
  4. Manufacture as per Nema FG-1 & EIL standards
  5. Can be design as per requirement
  6. Self pigmentation hence no after colouring
  7. Accessories like Bends, Tees, Reducers are also available

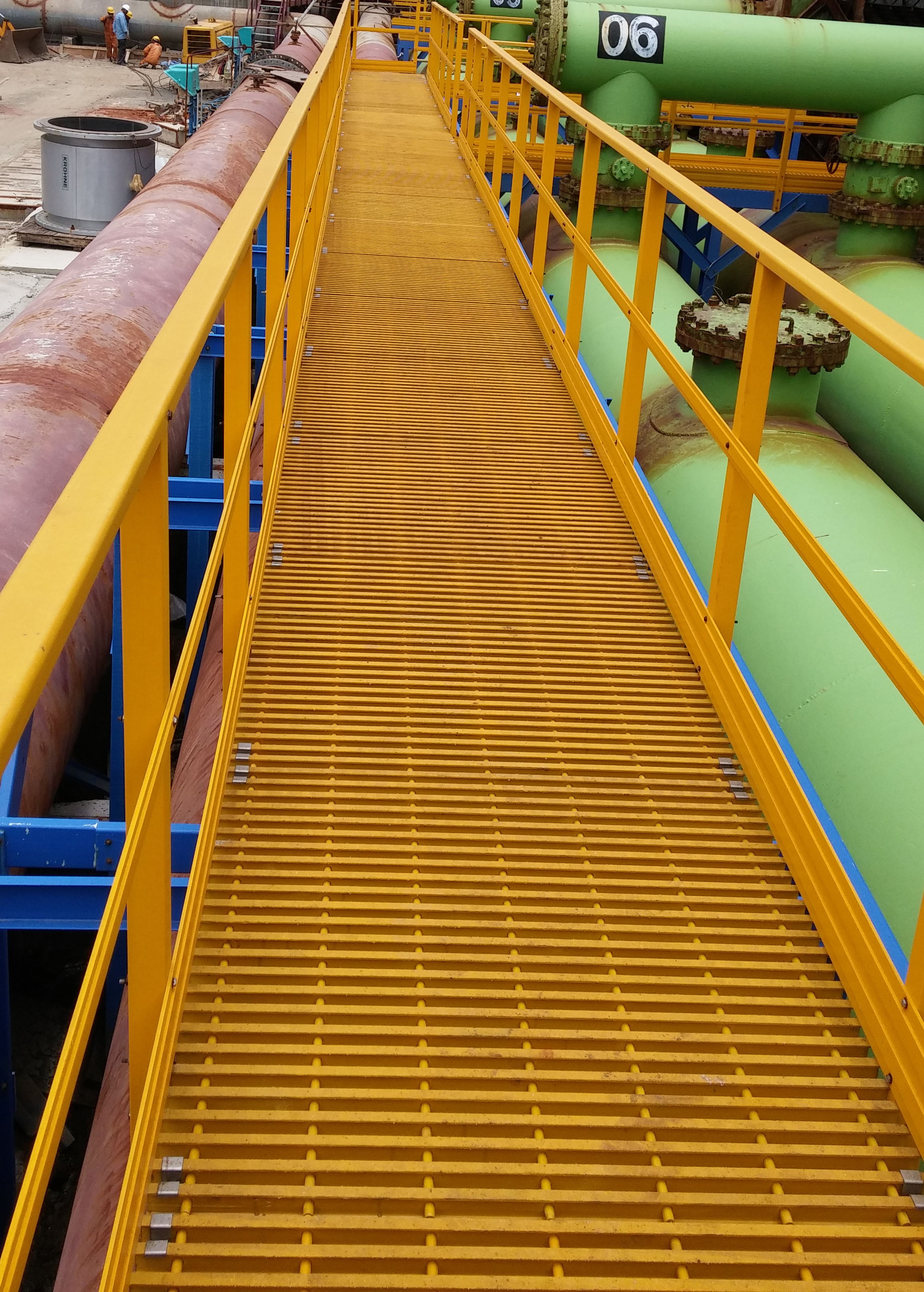

Operators Platform

  1. Material of construction - Pultruded GRP / FRP
  2. Can be made in any size and thickness as per load
  3. Suitable for Human traffic and load
  4. Can be made in any colour with self pigmentation hence no after colouring
  5. Can be made anti Skid

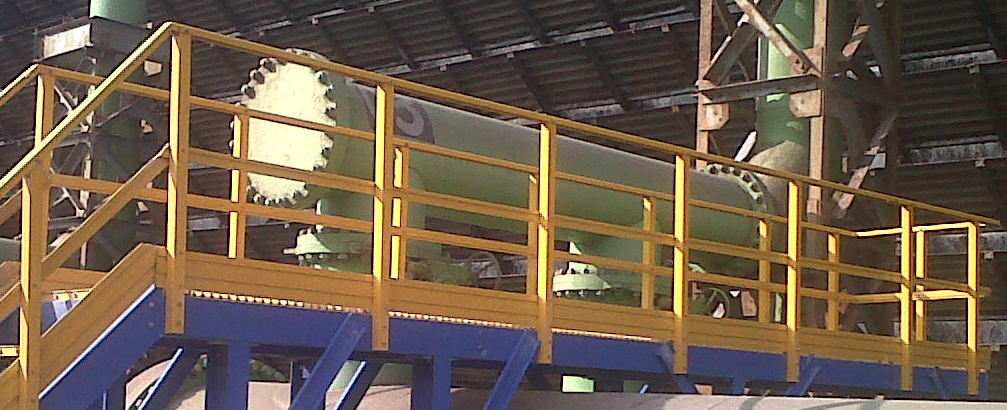

Hand Rail & Fencing

  1. Material of construction - Pultruded GRP / FRP
  2. Can be made in any size and thickness as per requirments
  3. Easy to join each other & to concrete columns
  4. Can be made in any colour with self pigmentation hence no after colouring
  5. Useful for Chemical Plants, Fencing for SEZ, Area near seashore etc.

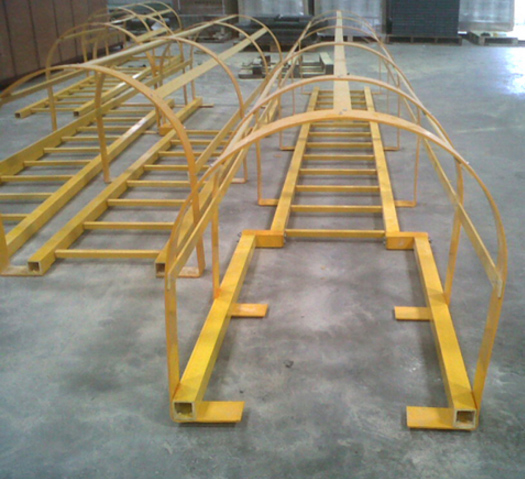

Ladder

  1. Material of construction - Pultruded GRP / FRP
  2. Can be design in any size and thickness as per requirments
  3. Type available - Plain, Self Supported, Extendable
  4. Can be made in any colour with self pigmentation hence no after colouring
  5. Easy to carry and install
  6. Non Conductive hence shock proof

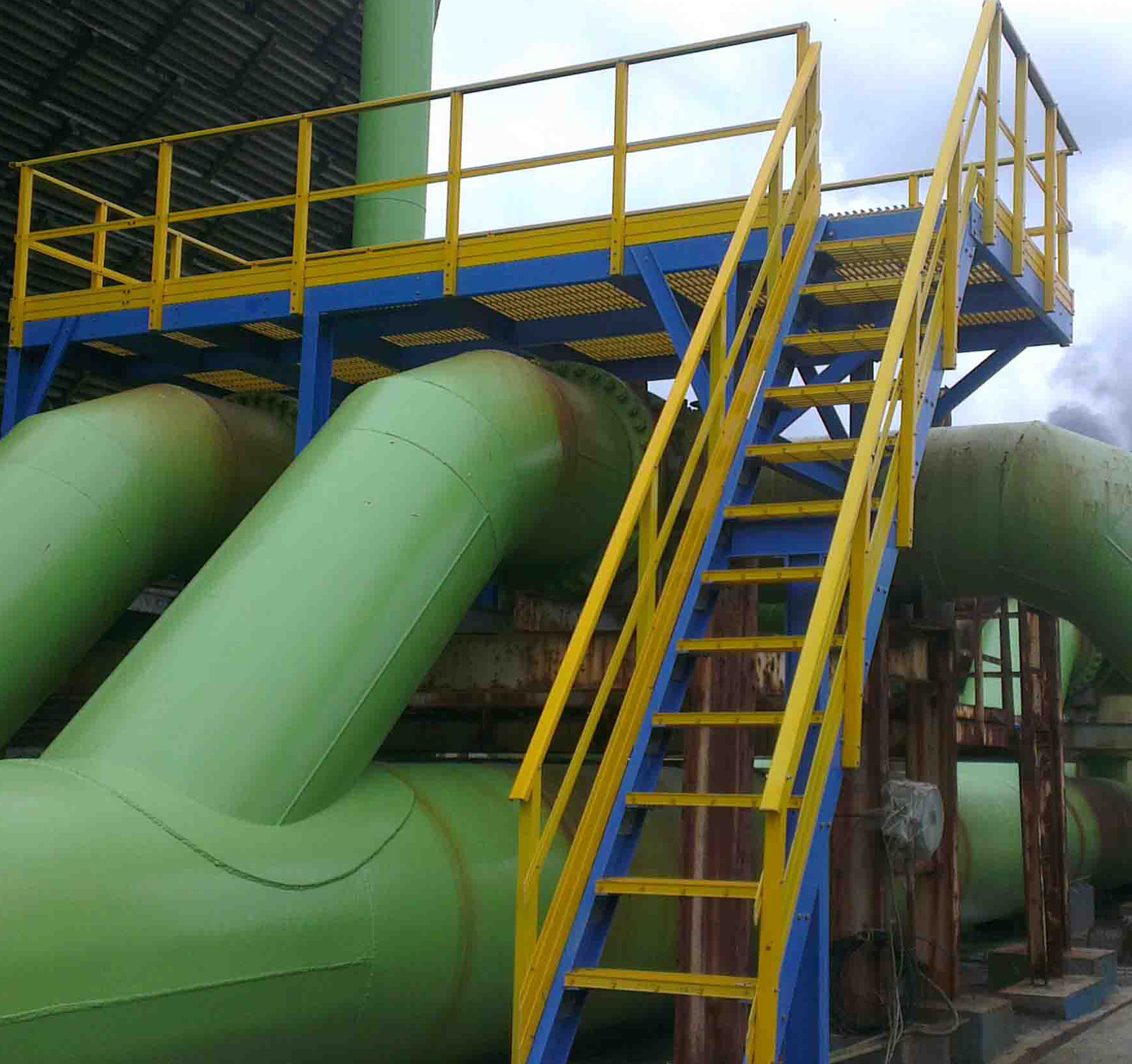

Staircase

  1. Material of construction - Pultruded GRP / FRP
  2. Can be made in any size and thickness as per load
  3. Suitable for Human traffic and load
  4. Can be made in any colour with self pigmentation hence no after colouring
  5. Can be made anti Skid

Battery Stand

  1. Material of construction - Pultruded GRP / FRP
  2. 1 / 2 / 3 Tier
  3. Corrosion because of Acid spillage is nil
  4. Can be design as per numbers of battery and it's weight
  5. Can be made in any colour with self pigmentation hence no after colouring

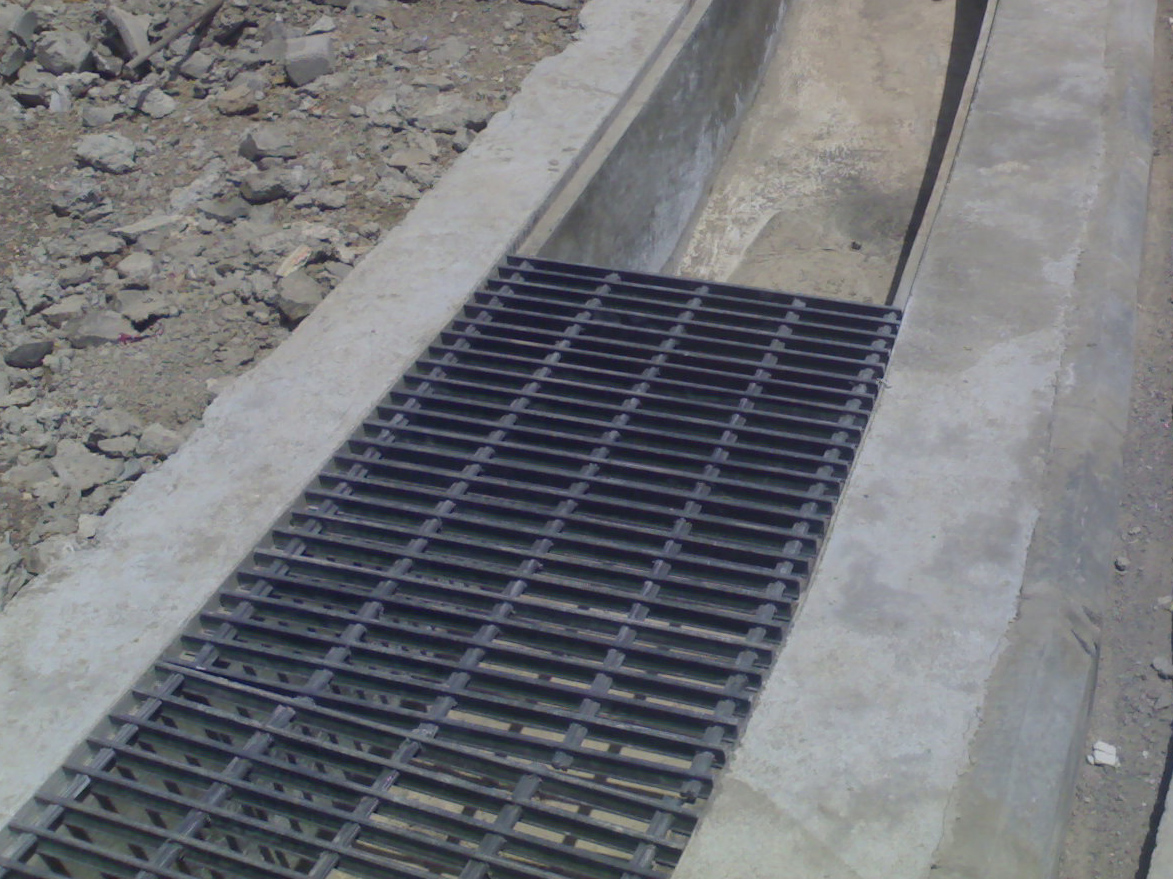

Trench Cover

  1. Material of construction - Pultruded GRP / FRP
  2. Height of Grating - 25, 30 & 40 mm
  3. Can be design as per requirement of load
  4. Can be made in any colour with self pigmentation hence no after colouring
  5. Can be made anti skid

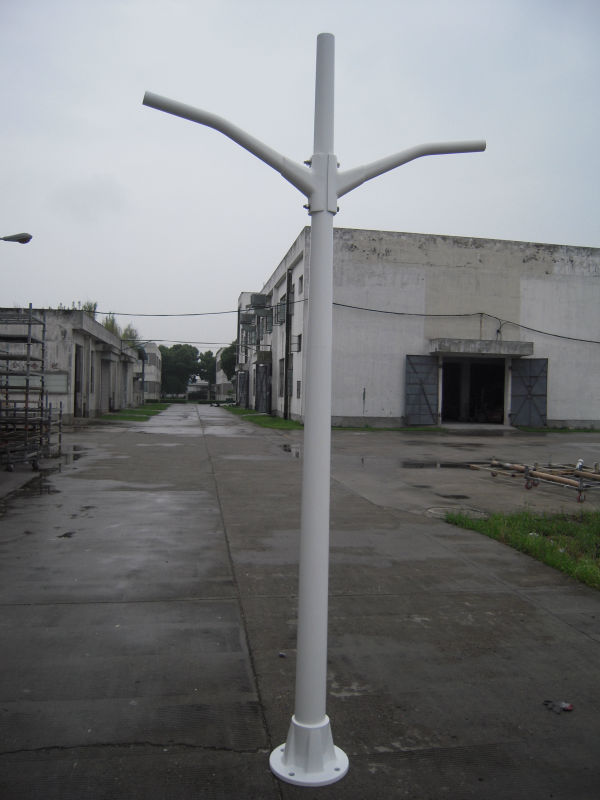

Light Pole

  1. Material of construction - Pultruded GRP / FRP
  2. Height of Grating - 3, 5, 7, 9, 11 Mtrs. etc.
  3. Light, Medium & Heavy duty models available
  4. Can be tailor made design as per user's requirement & choice
  5. Can be deisgn to withstand upto 260 Kmph with minimum deflection
  6. Can be made in any colour with self pigmentation hence no after colouring

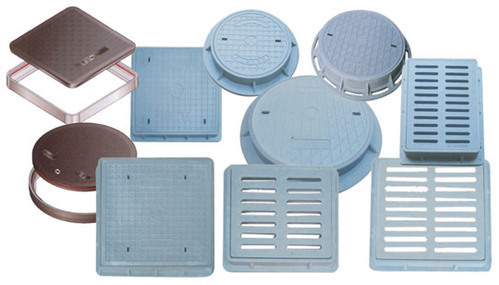

Manhole Cover

  1. Material of construction - GRP / FRP
  2. Available in Circular, Rectangular & Square shapes
  3. Standard load bering capacity is up to 60 Tons
  4. Available with or without frame
  5. High strength to weight ratio with no scrap value
  6. Can be made in any colour with self pigmentation hence no after colouring

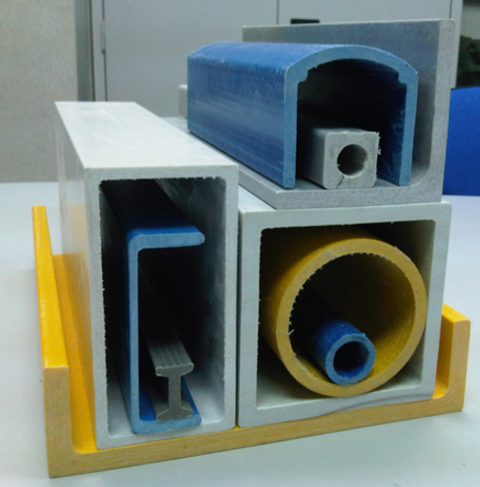

Profiles

  1. Material of construction - Pultruded GRP / FRP
  2. 150 different profiles like angles, channels, sq. tubes, round tubes, I beams, rods etc.
  3. Can be made any custom made profiles with constant cross sections
  4. Can be made in any colour with self pigmentation hence no after colouring
