Valves

HDPE Valves

Description

We distribute various types of valves like Polyproplene and High Density Polythylene Ball Valves, Diaphragm Valves, Non-return Valves, Foor Valves, Flow Indicators, Y-Type Strainers and a host of other accessories in various sizes, the maximum being 315mm.

Types of Valves

  1. Ball Valve
  2. Actuated Valve
  3. Diaphragm Valve
  4. Non Return Valve
  5. Foot Valve
  6. Butterfly Valve
  7. Flow Indicator
  8. "Y" Type Strainer

BASIC USE

  1. Chemical & Process
  2. Fertilizers
  3. Petrochemicals
  4. Pulp & Paper Industries
  5. Pharmaceuticals
  6. Salt & Marine
  7. Food & Beverages
  8. Steel Industries
  9. Power Plants
  10. Water Treatment Plants

Types of Valves

  1. Ball Valve
  2. Actuated Valve
  3. Diaphragm Valve
  4. Non Return Valve
  5. Foot Valve
  6. Butterfly Valve

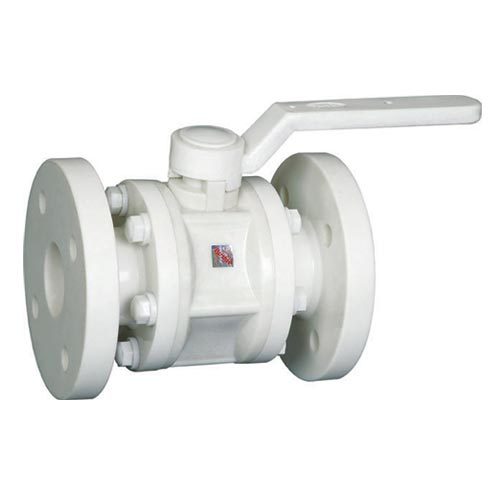

1. Ball Valve

Technical Data
Construction 3 piece design, Single piece stem (spindle) Reinforced Ball, Teflon seated, full bore
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.

Engineering Options:

S.S. 304/316 Parts can be supplied

Glass-filled PP/PTFE BALL on request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)

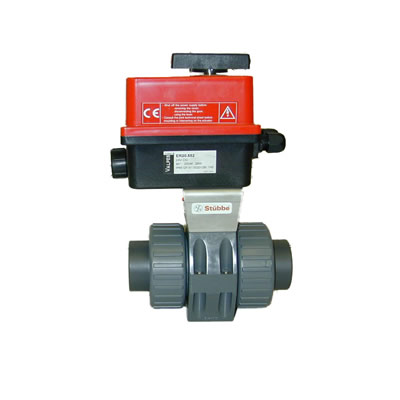

2. Actuated Valve

Technical Data: 5/2 Internal pilot operated, Poppet type, Namur Solenoid valve
Type Pressure
51424 2.10 Bar
52408 0-10 Bar

Engineering Options:

S.S. 304/316 Parts can be supplied

Glass-filled PP/PTFE BALL on request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)

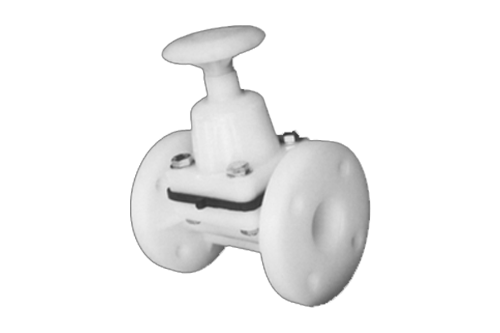

3. Diaphragm Valve

Technical Data
Construction Wire type design, Soft seated, Raising stem
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.

Engineering Options:

S.S. 304/316 Parts can be supplied

Teflon coated Rubber, EPDM Rubber, Viton Rubber on request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)

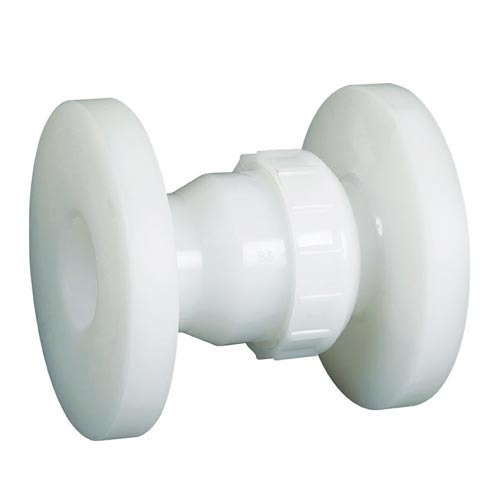

4. Non return Valve

Technical Data
Construction Ball type design, Soft seated
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.

Engineering Options:

Teflon coated Rubber, EPDM Rubber, Viton Rubber on request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)


5. Foot Valve - Flange End

Technical Data
Construction Ball type design, Soft seated
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.

Engineering Options:

Teflon coated Rubber, EPDM Rubber, Viton Rubber on request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)

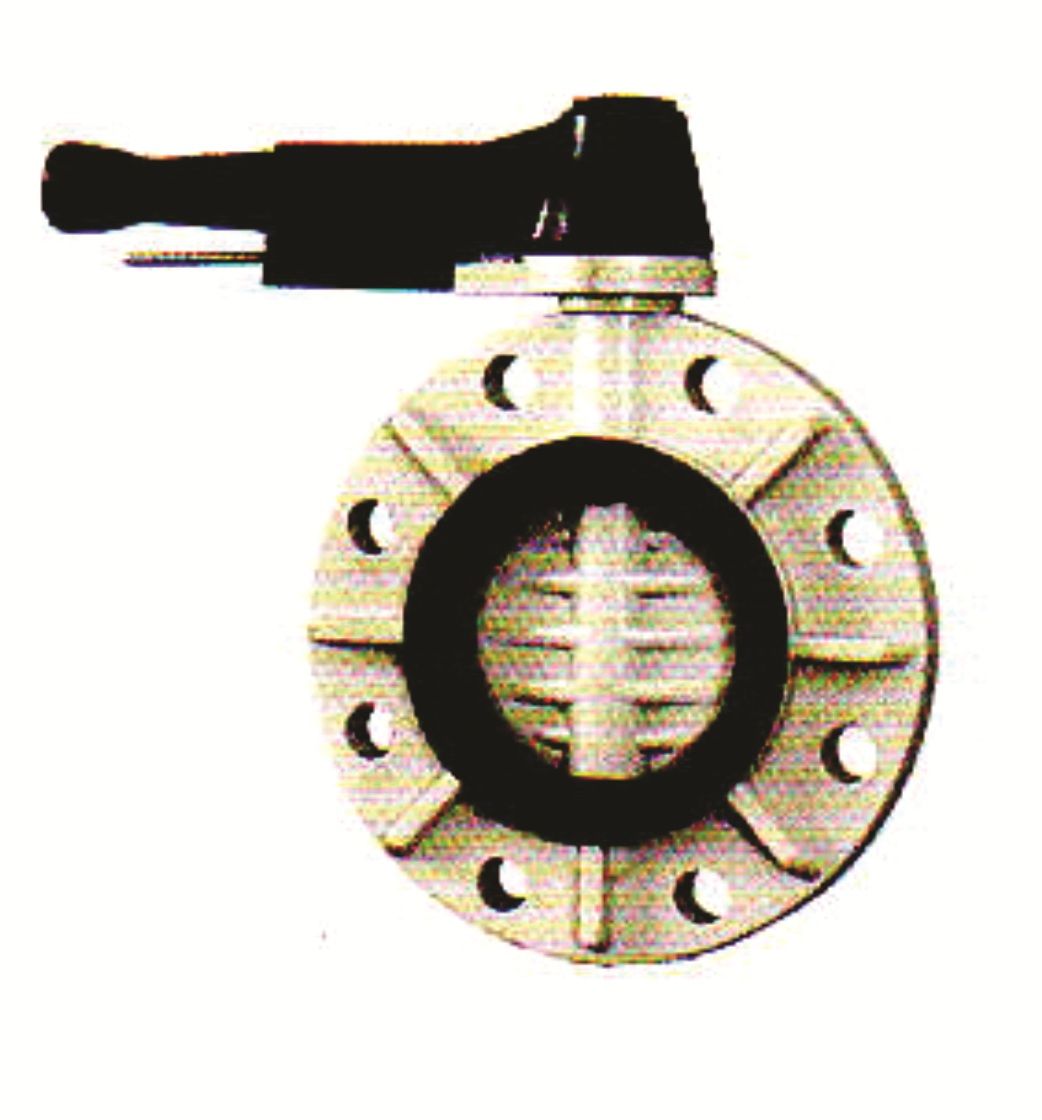

6. Butterfly Valve

Technical Data
Construction 1 piece
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ASA 150

Engineering Options:

Teflon coated Rubber, EPDM Rubber, Viton Rubber on request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)


Flow Indicator - Flange End

Technical Data
Construction 3 piece Design, Full Bore, Borosil Glass, Teflon Seated
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.

Engineering Options:

S.S. 304/316 parts can be supplied

Glass Length as per your request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)

"Y" Type Strainer

Technical Data
Construction 3 piece Design, Full Bore, Borosil Glass, Teflon Seated
Design & Manufacturings STD As per Manufacturer's Standard
End Connections Flanged as per ANSI B 16.5 (150#) & as per BS 10(Table D/E/F) & DIN STD.

Engineering Options:

S.S. 304/316 parts can be supplied

Glass Length as per your request

Available M.O.C.:

PP (POLYPROPYLENE)

HDPE (HIGH DENSITY POLYETHYLENE)

ISOTACTIC PP

PVDF (POLYVINYLIDENE FLUORIDE)
